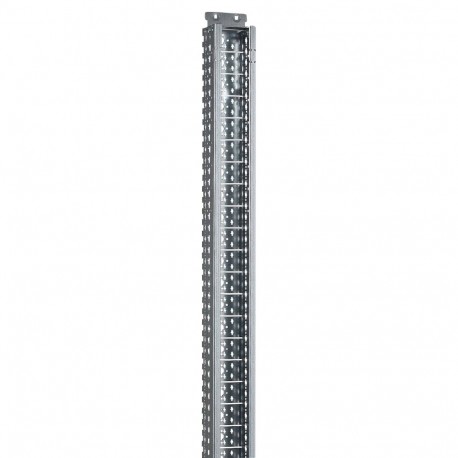

020853 LEGRAND XL3 MONT FUNCTIONAL H2200
020853
020853
LEGRAND
1 Pcs.
XL3 MONT FUNCTIONAL H2200
Functional uprights XL³ 4000 (2) -for enclosure without int. cable sleeve -H.2200 mm
Functional Upright (2) XL³ 4000 for Cabinet without Cell - Height 2200mm
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)51.00
- Weight (g)13 500.00
Product characteristics
EquipmentFunctional uprights
- Set of 2 functional uprights
- For fixing mounting equipment (faceplate, rails…)
- For enclosure without internal cable sleeve
- Height : 2200 mm
General characteristics
Distribution enclosures XL³ 4000- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 2200 mm |
| Model (EF000010) | Other |
| Material (EF002169) | Metal |
| Suitable for enclosure building width (EF000326) | 975 mm |
| Suitable for enclosure building depth (EF000327) | 975 mm |
| Suitable for enclosure building height (EF009583) | 2200 mm |
