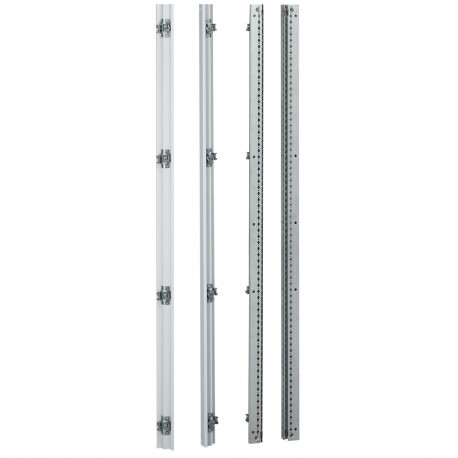

LEGRAND 020850 020850 LEGRAND XL3 4000 MONT FRAME H2200 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020850 LEGRAND XL3 4000 MONT FRAME H2200

020850

020850

LEGRAND

1 Pcs.

XL3 4000 MONT FRAME H2200 Structural uprights (4) XL³ 4000 - fit onto roof base - Height 2200 mm Structural uprights (4) XL³ 4000 H2200mm

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Legrand xl3 4000 mont frame h2200 serves as a structural framework designed to house modular electrical distribution equipment within large industrial enclosures. Supporting frames offer the necessary mechanical rigidity to build complex multi-tier switchgear assemblies safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 2200 mm
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)43.00
  • Weight (g)22 540.00
Product characteristics
Enclosures and cable sleeves modular metal
Structural uprights
  • Set of 4 uprights
  • Height : 2200 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
