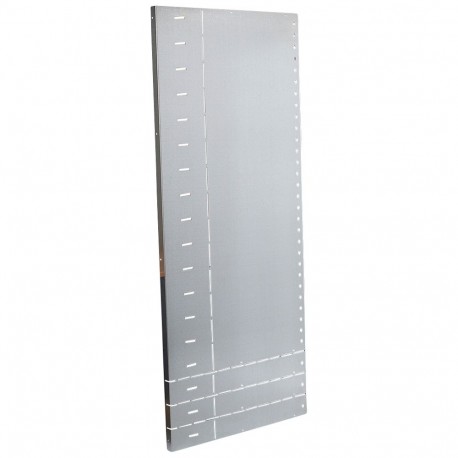

LEGRAND 020849 020849 LEGRAND XL3 SEPAR. VERT. JDB POST. 975 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020849 LEGRAND XL3 SEPAR. VERT. JDB POST. 975

020849

020849

LEGRAND

1 Pcs.

XL3 SEPAR. VERT. JDB POST. 975 Vertical partitionning for rear busbars for XL³ 4000/6300 depth 975 mm Vertical compartment for rear busbar XL³ 4000 - D975mm

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 SEPAR. VERT. JDB POST. 975 component, identified by part number 020849, functions as a vertical separation barrier for busbar installations within modular electrical enclosures. Panel builders use such structural elements to maintain proper compartmentalization and safety standards in low-voltage switchboards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): No
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 975 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)63.00
  • Weight (g)20 200.00
Product characteristics
Vertical partitionning for rear busbars
For enclosure depth 975 mm
  • For forms:
    • 2b (rear terminals connection)
    • 3b (rear terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
