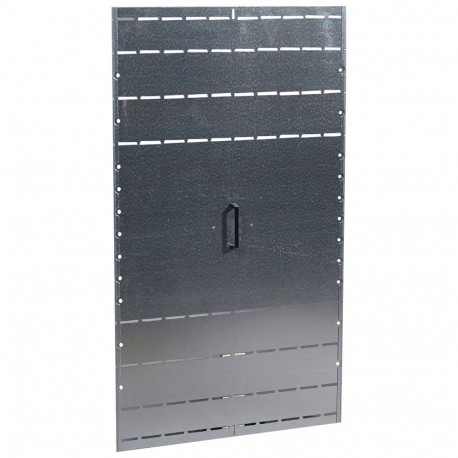

LEGRAND 020838 020838 LEGRAND XL3 PANEL SEPAR. VERT 725MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020838 LEGRAND XL3 PANEL SEPAR. VERT 725MM

020838

020838

LEGRAND

1 Pcs.

XL3 PANEL SEPAR. VERT 725MM Kit for vert. separation int./ext. cable sleeves for XL³ 4000/6300 depth 725 mm Vertical separation set between int./ext. lateral cells XL³ 4000 - D725mm

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 020838 is a vertical panel separation component designed for XL3 enclosure systems to partition internal spaces securely. Vertical separators are vital for organizing switchboards, supporting compartmentalization, and maintaining safety ratings across multi-tier electrical assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)34.00
  • Weight (g)16 589.00
Product characteristics
Kit for vertical separation between internal cable sleeve and external cable sleeve
For enclosure depth 725 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
