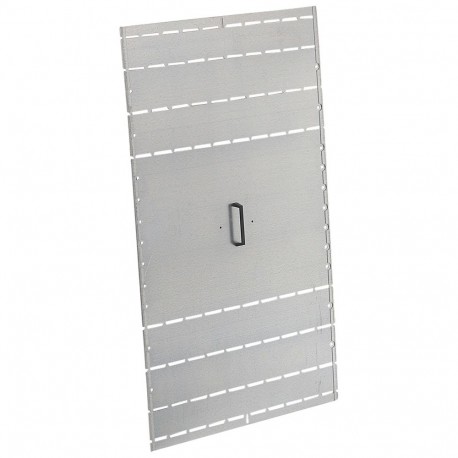

LEGRAND 020829 020829 LEGRAND XL3 KIT SEPARATION VERT. 975MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020829 LEGRAND XL3 KIT SEPARATION VERT. 975MM

020829

020829

LEGRAND

1 Pcs.

XL3 KIT SEPARATION VERT. 975MM Vertical separation enclosure/cable sleeve for XL³ 4000/6300 depth 975 mm Vertical separation set between cabinet and side cell XL³ 4000 - D975mm

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A vertical separation kit for electrical distribution enclosures is utilized to segment interior columns and establish defined functional compartments. This steel partitioning component maintains strict compliance with panel building safety classifications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 975 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)74.00
  • Weight (g)17 700.00
Product characteristics
Kit for vertical separation between enclosure and cable sleeve
For enclosure depth 975 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
