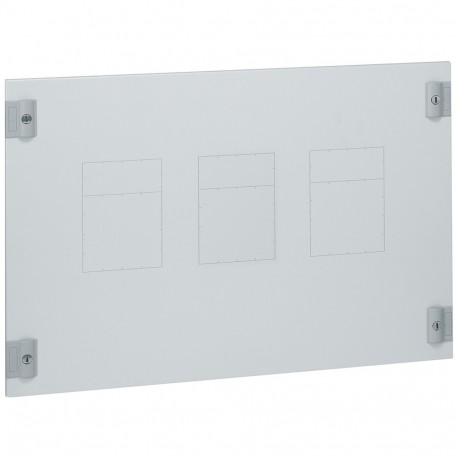

LEGRAND 020820 020820 LEGRAND XL3 CAP 1/4 V DPX3 630 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020820 LEGRAND XL3 CAP 1/4 V DPX3 630

020820

020820

LEGRAND

1 Pcs.

XL3 CAP 1/4 V DPX3 630 Metal faceplate XL³ 800/4000 - 1-3 DPX 250/630 - vertical - 1/4 turn - 24 modules Metal terminal cover XL³ 800/4000 From 1 to 3 DPX³ 630 - vertical

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020820 cap is a modular enclosure component built to partition and shield circuit breakers like the DPX3 series within large distribution boards. Panel caps ensure proper physical separation and operator safety across complex industrial electrical distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)12.00
  • Weight (g)2 972.00
Product characteristics
Metal faceplates for devices in vertical position
For 1 to 3 DPX³ 630 only
  • 24 modules
  • For fastening and sealing
  • 1/4 turn
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
