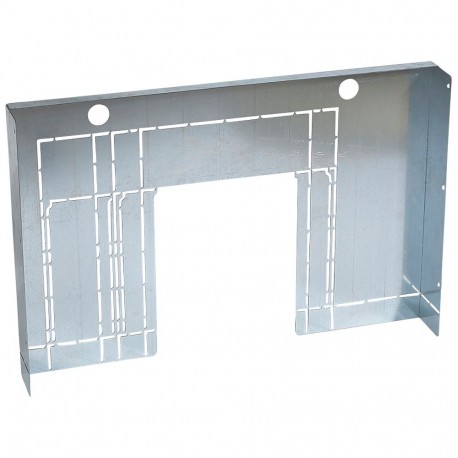

LEGRAND 020819 020819 LEGRAND XL3 KIT CAJON DMX3 T2 L850 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020819 LEGRAND XL3 KIT CAJON DMX3 T2 L850

020819

020819

LEGRAND

1 Pcs.

XL3 KIT CAJON DMX3 T2 L850 DMX³ 2500/4000 compartment kit for XL³ 4000/6300 - width 36 modules - depth 975 mm DMX³ Box Set 2500/4000 - L36mod - D975mm

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 020819 drawer kit provides specialized mechanical housing and mounting support for DMX3 air circuit breakers within XL3 enclosure systems. Breaker drawer kits allow smooth rack-in and rack-out operations for industrial power switching devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 975 mm
  • Width (EF000008): 850 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)95.00
  • Weight (g)49 000.00
Product characteristics
DMX³ 2500/4000, compartment kit
Width 36 modules - for enclosure depth 975 mm
  • For forms:
    • 2b (front or rear terminals connection)
    • 3b (front or rear terminals connection)
    • 4a (front terminals connection)
    • 4b (rear terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
