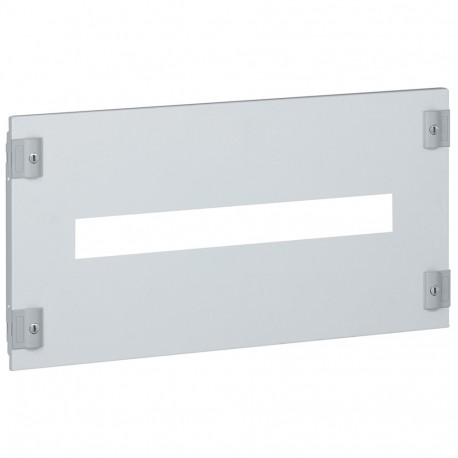

LEGRAND 020810 020810 LEGRAND XL3 CAP 1/4 TURN DPX 300H View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020810 LEGRAND XL3 CAP 1/4 TURN DPX 300H

020810

020810

LEGRAND

1 Pcs.

XL3 CAP 1/4 TURN DPX 300H Metal faceplate XL³ 800/4000 - DPX³/DPX-IS - 1/4 turn - 24 modules Metal terminal cover XL³ 800/4000 for DPX³ and DPX-IS 250 H300

Automation > Front plate (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 020810 quarter-turn cap is utilized within XL3 enclosure systems to secure and access DPX breaker compartments efficiently. Panel builders incorporate these durable steel covers to streamline maintenance routines while maintaining structural panel integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm
  • Suitable for enclosure building height (EF009583): 2200 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)9.00
  • Weight (g)2 110.00
Product characteristics
Metal faceplates for devices in vertical position
For DPX³ with or without motor driven handle
  • 24 modules
  • For fastening and sealing
  • 1/4 turn
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: DPX³ 160, DPX³ 250 fixed version
