View larger
Images are for illustrative purposes only. Please refer to data sheet for details

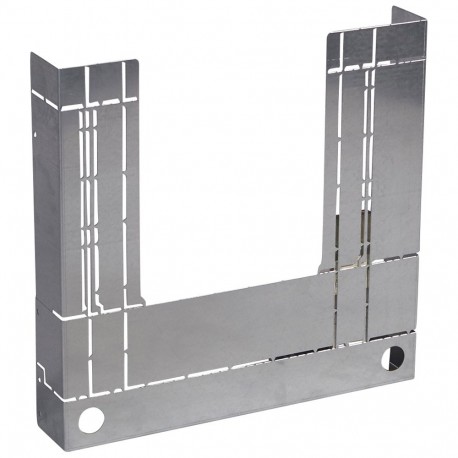

020808 LEGRAND XL3 COMPART. DMX3 T1 FRONT
020808
020808
LEGRAND
1 Pcs.
XL3 COMPART. DMX3 T1 FRONT
Front panel partitioning DMX³ for XL³ 4000/6300 - width 24 modules
Front face compartmentalization DMX³ XL³ 4000 - 24mod
Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)37.03
- Weight (g)3 947.00
Product characteristics
Front panel partitioning DMX³Width 24 modules
- For forms:
- 2a (rear terminals connection)
- 3a (rear terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300| Feature Name | Feature Value |
|---|---|
| For internal separation form 3b (EF009589) | No |
| With lock (EF006306) | No |
| Material (EF002169) | Steel |
| For internal separation form 3a (EF009588) | Yes |
| Surface finishing (EF006569) | Other |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 4b (EF009591) | No |
| For internal separation form 4a (EF009590) | No |
| Suitable for enclosure building width (EF000326) | 725 mm |
| With cable entry (EF000325) | Yes |
| Construction type (EF000767) | Individual part |
| Width (EF000008) | 600 mm |
