View larger
Images are for illustrative purposes only. Please refer to data sheet for details

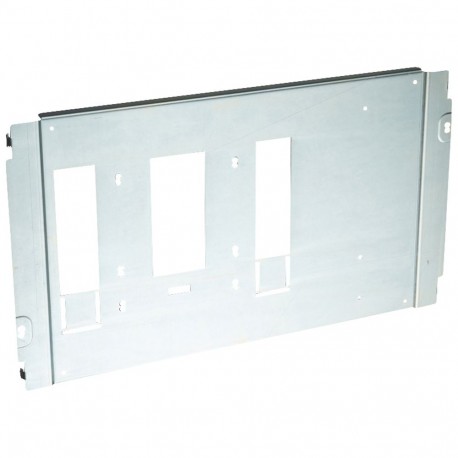

020798 LEGRAND PLATE MONT.DPX 250/630 GAC EXT
020798
020798
LEGRAND
1 Pcs.
PLATE MONT.DPX 250/630 GAC EXT
Adjustable plate XL³ 4000 - DPX 250/630 plug-in/draw-out - horizontal
Adjustable plate XL³ 4000 - DPX³ 630 removable/sectionable - horizontal
Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)14.00
- Weight (g)3 742.00
Product characteristics
Fixing plug-in or draw-out version DPX³ 630, with front or rear terminalsMounting plates for devices in vertical position
- For plug-in or draw-out device with or without elcbs
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 plug-in, draw-out version or automatic transfer switches- Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 300 mm |
| Material (EF002169) | Steel |
| Perforated (EF000115) | Yes |
| Surface protection (EF000139) | Lacquered |
| Width (EF000008) | 600 mm |
