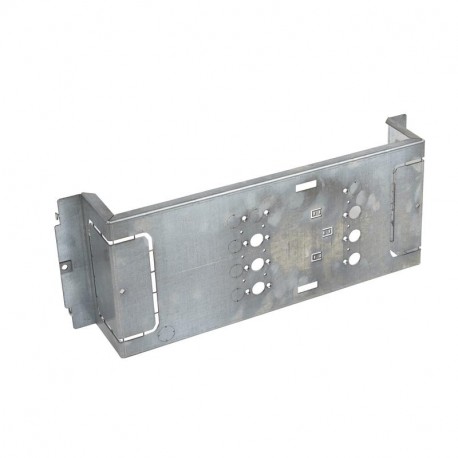

LEGRAND 020796 020796 LEGRAND XL3 PLATE DPX3 250 HORIZ FIXED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020796 LEGRAND XL3 PLATE DPX3 250 HORIZ FIXED

020796

020796

LEGRAND

1 Pcs.

XL3 PLATE DPX3 250 HORIZ FIXED Adjustable plates XL³ 4000 for 1 DPX³ 250 - horizontal - 24 modules XL³ 4000 mounting plate for 1 DPX³ 250 fixed - vertical - 24mod

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 020796 LEGRAND XL3 PLATE DPX3 250 HORIZ FIXED is a metal mounting plate designed to securely position circuit breakers and control gear within modular electrical enclosures. Panel plates of this type ensure proper alignment, spacing, and mechanical support for internal distribution components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal

More info

▲
  • Pack (number of units)1
  • Volume (dm3)12.495
  • Weight (g)3 444.00
Product characteristics
Fixing fixed version DPX³ 160/250 with front or rear terminals
Adjustable plates for devices in horizontal position
  • 24 modules
  • For 1 DPX³ 250
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: DPX³ 160, DPX³ 250 fixed version
