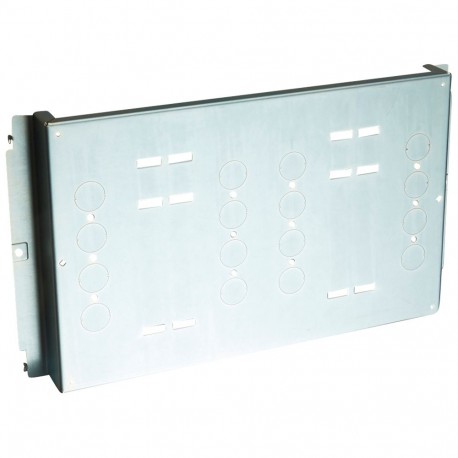

020793 LEGRAND D. ADJUSTABLE DPX 630 HOR. FIXED
020793
020793
LEGRAND
1 Pcs.
D. ADJUSTABLE DPX 630 HOR. FIXED
Adjustable plate XL³ 4000 - for 1 DPX 630 fixed - horizontal - 24 modules
Adjustable mounting plate XL³ 4000 - 1 DPX³ 630 fixed - horizontal - 24mod
Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)14.00
- Weight (g)4 463.00
Product characteristics
Fixing fixed version DPX³ 630, with front or rear terminalsAdjustable plates for devices in horizontal position
- 24 modules
- For 1 DPX³ 630 with or without elcbs
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 fixed version- Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 300 mm |
| Material (EF002169) | Steel |
| Perforated (EF000115) | Yes |
| Surface protection (EF000139) | Lacquered |
| Width (EF000008) | 600 mm |
