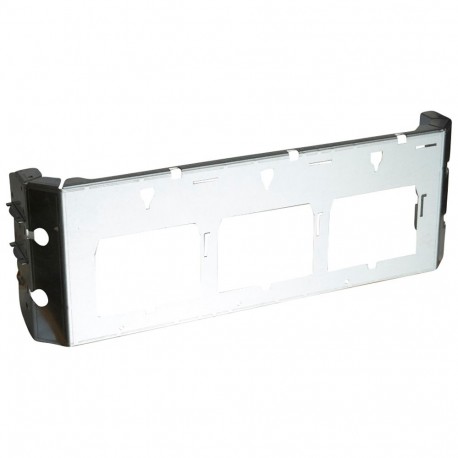

LEGRAND 020790 020790 LEGRAND XL3 D. REG. DPX3 FIXED 24 MOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020790 LEGRAND XL3 D. REG. DPX3 FIXED 24 MOD

020790

020790

LEGRAND

1 Pcs.

XL3 D. REG. DPX3 FIXED 24 MOD Adjustable fixing devices XL³ 4000 for 1 to 3 DPX³ 160/250 - vertical - 24 modules XL³ 4000 mounting plate for 1 to 3 DPX³ fixed - vertical - 24mod

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)14.742
  • Weight (g)2 218.00
Product characteristics
Fixing fixed version DPX³ 160/250 with front or rear terminals
Adjustable fixing devices for MCCBs in vertical position
  • The MCCBs are fixed using special mounting plates
  • Allow mounting direct rotary handles and front motor-driven handles
  • 24 modules
  • For 1 to 3 DPX³
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: DPX³ 160, DPX³ 250 fixed version

ETIM for 020790 Cabinets and enclosures (EC002620)
Feature Name Feature Value
Model (EF000010) Other
Material (EF002169) Metal
Suitable for enclosure building width (EF000326) 725 mm
