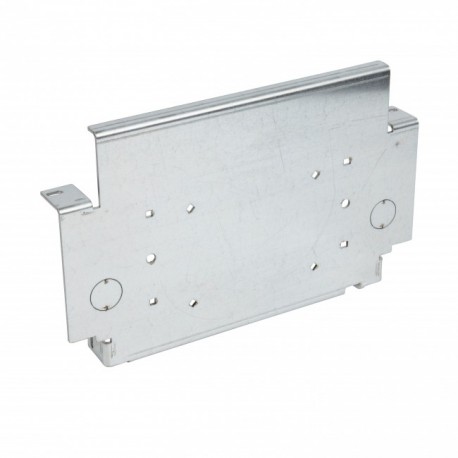

LEGRAND 020779 020779 LEGRAND XL3 PLATE DMX3 T0 FIXED CELL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020779 LEGRAND XL3 PLATE DMX3 T0 FIXED CELL

020779

020779

LEGRAND

1 Pcs.

XL3 PLATE DMX3 T0 FIXED CELL Fixing plate XL³ 4000 - cable sleeve - for 1 DMX³/DMX³-I 1600 External cell tray for fixing DMX³ or DMX³ -I 1600 in XL³ 4000

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A fixed cell plate provides a specialized mounting framework for heavy-duty circuit breakers and air circuit breaker cassettes inside industrial switchgear assemblies. The Legrand 020779 component ensures precise alignment and secure anchoring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 50 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Galvanised
  • Width (EF000008): 350 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)8.341
  • Weight (g)3 522.00
Product characteristics
Fixing devices for DMX³ 1600 and DMX³-I
Fixing plates for cable sleeve
  • For 1 DMX³ 1600 or DMX³-I
General characteristics
Equipment for XL³ 4000 - for mounting on plate: DMX³ 1600 and DMX³-I fixed or draw-out version
