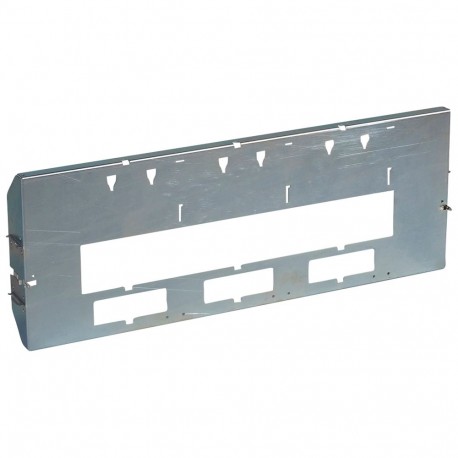

LEGRAND 020772 020772 LEGRAND XL3 P. REG. DPX250/630 DIF.POSTED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020772 LEGRAND XL3 P. REG. DPX250/630 DIF.POSTED

020772

020772

LEGRAND

1 Pcs.

XL3 P. REG. DPX250/630 DIF.POSTED Adjust fixing device XL³ 4000 - 1-3 DPX 250/630 fixed + elcb - vertical - 36 modules Adjustable clamping device XL³ 4000 for 1 to 3 DPX³ 250/630 diff. Fixed

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020772 XL3 P. REG. DPX250/630 DIF.POSTED functions as an internal structural regulation plate designed for modular switchboards. Switchboard builders use these metal panels to securely mount circuit breakers and maintain organized electrical segregation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 975 mm
  • Width (EF000008): 850 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)26.00
  • Weight (g)4 184.00
Product characteristics
Fixing fixed version DPX³ 630, with front or rear terminals
Adjustable fixing devices for MCCBs in vertical position
  • The MCCBs are fixed using special plates
  • 36 modules
  • For 1 to 3 DPX³ 630 with earth leakage module
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
