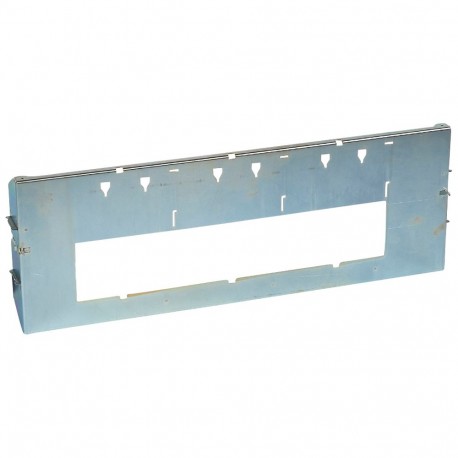

LEGRAND 020770 020770 LEGRAND XL3 P. REG. DPX250/630 FIXED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020770 LEGRAND XL3 P. REG. DPX250/630 FIXED

020770

020770

LEGRAND

1 Pcs.

XL3 P. REG. DPX250/630 FIXED Adjust fixing device XL³ 4000 - 1-3 DPX 250/630 fixed - vertical - 36 modules XL³ 4000 adjustable clamping device for 1 to 3 DPX³ 250/630 fixed

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)26.00
  • Weight (g)3 818.00
Product characteristics
Fixing fixed version DPX³ 630, with front or rear terminals
Adjustable fixing devices for MCCBs in vertical position
  • The MCCBs are fixed using special plates
  • 36 modules
  • For 1 to 3 DPX³ 630
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles

ETIM for 020770 Cabinets and enclosures (EC002620)
Feature Name Feature Value
Model (EF000010) Other
Material (EF002169) Metal
Suitable for enclosure building width (EF000326) 975 mm
Width (EF000008) 850 mm
