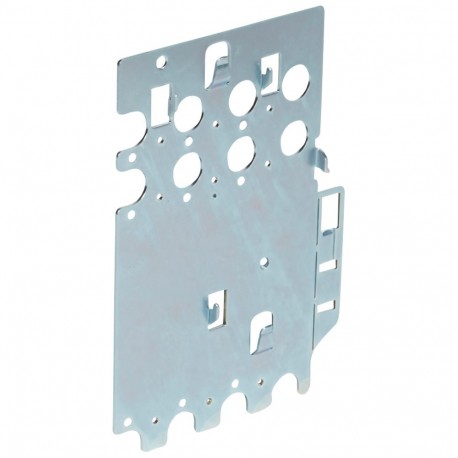

LEGRAND 020764 020764 LEGRAND XL3 PLATE DPX3 250 FIXED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020764 LEGRAND XL3 PLATE DPX3 250 FIXED

020764

020764

LEGRAND

1 Pcs.

XL3 PLATE DPX3 250 FIXED Mounting plates XL³ 4000 for 1 DPX³ 160 - vertical XL³ 4000 mounting plate for 1 DPX³ 250 - vertical

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed specifically to house protective switching hardware, the Legrand 020764 legrand xl3 plate dpx3 250 fixed provides a dedicated mounting interface for fixed circuit breakers. Such plates ensure precise alignment and secure anchoring within multi-row distribution enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.197
  • Weight (g)410.00
Product characteristics
Fixing fixed version DPX³ 160/250 with front or rear terminals
Mounting plates for devices in vertical position
  • For 1 DPX³ 250
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: DPX³ 160, DPX³ 250 fixed version
