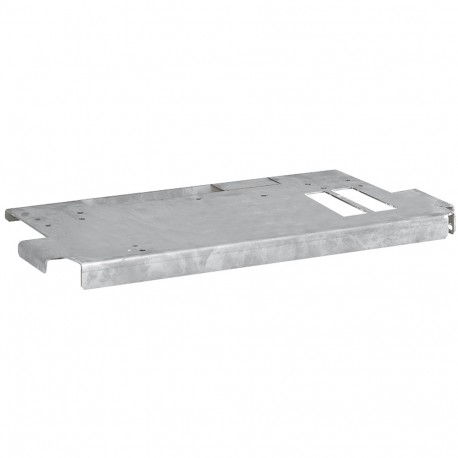

LEGRAND 020751 020751 LEGRAND XL3 PLATE DMX3 T1/2 FIXED L600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020751 LEGRAND XL3 PLATE DMX3 T1/2 FIXED L600

020751

020751

LEGRAND

1 Pcs.

XL3 PLATE DMX3 T1/2 FIXED L600 Fixing device XL³ 4000 - 1 DMX³ 2500/4000 3P/4P / DMX³-I fixed version - 24 modules XL³ 4000 fixing device - 1 DMX³ or DMX³ -I - fixed - L600mm - 24mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 020751 LEGRAND XL3 PLATE DMX3 T1/2 FIXED L600 serves as a dedicated mounting bracket and partition plate used to install fixed circuit breakers securely within modular XL3 enclosures. These plates ensure proper mechanical alignment and separation of high-capacity protective devices inside distribution switchboards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 50 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Untreated
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)26.00
  • Weight (g)8 076.00
Product characteristics
Fixing devices for DMX³ 2500 / 4000 and DMX³-I
For DMX³ fixed version
  • 24 modules
  • For 1 DMX³ 2500/4000, N/H/L, 3P/4P, and DMX³-I
  • Width 600 mm
General characteristics
Equipment for XL³ 4000 - for mounting on plate: DMX³ 2500 and 4000 and DMX³-I fixed or draw-out version
