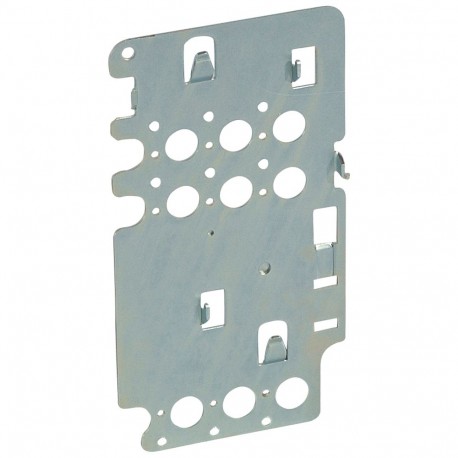

LEGRAND 020749 020749 LEGRAND XL3 PLATE DPX3 160 FIXED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020749 LEGRAND XL3 PLATE DPX3 160 FIXED

020749

020749

LEGRAND

1 Pcs.

XL3 PLATE DPX3 160 FIXED Mounting plates XL³ 4000 for 1 DPX³ 250 - vertical XL³ 4000 mounting plate for 1 DPX³ 160 fixed - vertical

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand xl3 plate dpx3 160 fixed, identified by part number 020749, is a modular mounting plate engineered to accommodate and secure fixed circuit breaker devices inside XL3 electrical distribution boards. Plates of this kind provide dedicated structural support and alignment for modular protection gear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.54
  • Weight (g)357.00
Product characteristics
Fixing fixed version DPX³ 160/250 with front or rear terminals
Mounting plates for devices in vertical position
  • For 1 DPX³ 160
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: DPX³ 160, DPX³ 250 fixed version
