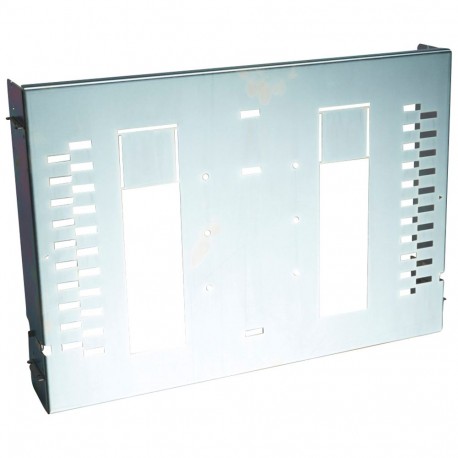

LEGRAND 020736 020736 LEGRAND XL3 PLATE DPX 1600 FIXED PAIR H. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020736 LEGRAND XL3 PLATE DPX 1600 FIXED PAIR H.

020736

020736

LEGRAND

1 Pcs.

XL3 PLATE DPX 1600 FIXED PAIR H. Adjustable plate XL³ 4000 - for 1 DPX 1600 fixed rear terminals - horizontal - 24 modules XL³ 4000 adjustable plate - 1 DPX³ 1600 fixed - rear connection

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 plate DPX 1600 fixed pair H (020736) is utilized within modular distribution boards to securely mount and support heavy circuit breakers and switching devices, maintaining physical separation and safety compliance across electrical panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 400 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)20.00
  • Weight (g)4 392.00
Product characteristics
Fixing fixed version devices
Adjustable plate for devices in horizontal position
  • For 1 DPX-IS 1600 or DPX³ 1600 rear terminals in vertical position
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
