> LEGRAND > XL3 800-4000 ENERGY DISTRIBUTION CABINETS > 020735

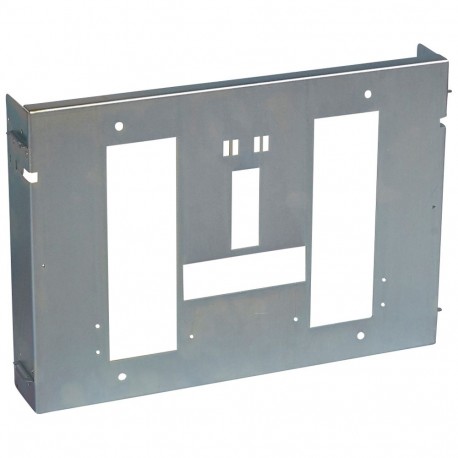

LEGRAND 020735 020735 LEGRAND XL3 P. REG. DPX1600 SECT. HOR. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020735 LEGRAND XL3 P. REG. DPX1600 SECT. HOR.

020735

020735

LEGRAND

1 Pcs.

XL3 P. REG. DPX1600 SECT. HOR. Adjustable plate XL³ 4000 - for 1 DPX 1600 draw-out - horizontal Adjustable plate XL³ 4000 - 1 DPX³ 1600 rear connection sectionable

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)23.00
  • Weight (g)4 212.00
Product characteristics
Fixing draw-out version DPX³ 1600, with front or rear terminals
Adjustable plates for devices in horizontal position
  • 24 modules
  • For 1 DPX³ 1600 with rear terminals
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 draw-out version and automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles

ETIM for 020735 Cabinets and enclosures (EC002620)
Feature Name Feature Value
Model (EF000010) Other
Material (EF002169) Metal
Suitable for enclosure building width (EF000326) 725 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
