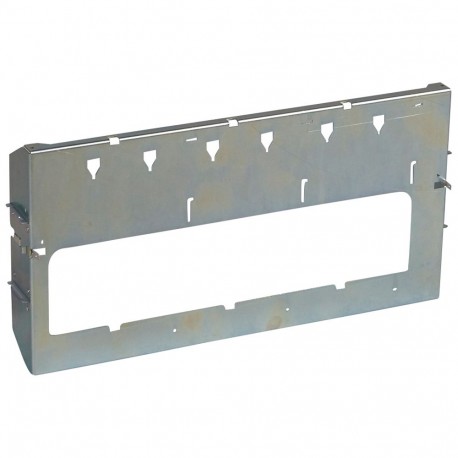

LEGRAND 020720 020720 LEGRAND XL3 P. REG. DPX250/630 FIXED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020720 LEGRAND XL3 P. REG. DPX250/630 FIXED

020720

020720

LEGRAND

1 Pcs.

XL3 P. REG. DPX250/630 FIXED Adjust fixing device XL³ 4000 - 1-3 DPX 250/630 fixed - vertical - 24 modules XL³ 4000 adjustable clamping device for 1 to 3 DPX³ 250/630 fixed

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand mounting component, part number 020720, functions as a structural regulation plate that supports fixed circuit breakers and distribution assemblies inside modular enclosures. This metal mounting element guarantees precise spacing and alignment for electrical protection devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 725 mm
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)19.00
  • Weight (g)2 887.00
Product characteristics
Fixing fixed version DPX³ 630, with front or rear terminals
Adjustable fixing devices for MCCBs in vertical position
  • The MCCBs are fixed using special plates
  • 24 modules
  • For 1 to 3 DPX³ 630
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 630 fixed version
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
