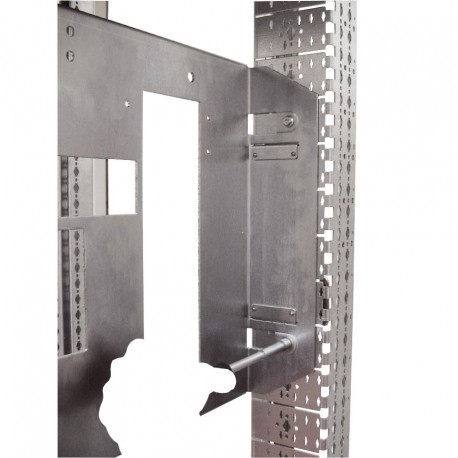

LEGRAND 020686 020686 LEGRAND XL3 PLC MONT INV NETWORKS DPX1600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020686 LEGRAND XL3 PLC MONT INV NETWORKS DPX1600

020686

020686

LEGRAND

1 Pcs.

XL3 PLC MONT INV NETWORKS DPX1600 Fixing automatic transfer switch in XL³ 4000 - for 2 fixed DPX³ 1600 in horizontal position XL³ 4000 clamping device for 2 DPX³ 1600 fixed - mains inverter

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Legrand 020686 LEGRAND XL3 PLC MONT INV NETWORKS DPX1600 functions as an internal installation kit designed for configuring automated control and switching gear inside XL3 switchboards. Modular mounting plates and adapter kits streamline the positioning of heavy protective devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)42.00
  • Weight (g)16 735.00
Product characteristics
Fixing automatic transfer switch version DPX³ 1600
Devices in horizontal position
  • 24 modules
  • For 2 fixed DPX³ 1600
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plates: DPX³ 1600 draw-out version and automatic transfer switches
  • Adjustable plates are used for front terminal/rear terminal connection and mounting of motor-driven or rotary handles
