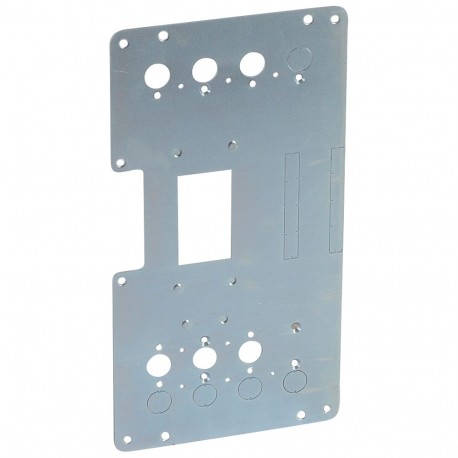

LEGRAND 020683 020683 LEGRAND XL3 PLATE DPX3 250 INV NETWORK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020683 LEGRAND XL3 PLATE DPX3 250 INV NETWORK

020683

020683

LEGRAND

1 Pcs.

XL3 PLATE DPX3 250 INV NETWORK Mounting plates XL³ 4000 for 1 plug-in DPX³ 250 in transfer switch - vertical XL³ 4000 mounting plate for 1 DPX³ 250 removable inv. Networking - Vertical

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 020683 XL3 plate serves as a specialized internal partition and module mounting bracket within modular enclosure systems, enabling the orderly installation of circuit breakers and switching devices. Such hardware components ensure structural integrity and correct mechanical alignment inside complex electrical switchboards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 200 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.539
  • Weight (g)824.00
Product characteristics
Fixing plug-in version DPX³ 160/250 with front or rear terminals
Mounting plates for devices in vertical position
  • For 1 DPX³ 250 in transfer switch
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: plug-in DPX³ 160, DPX³ 250
