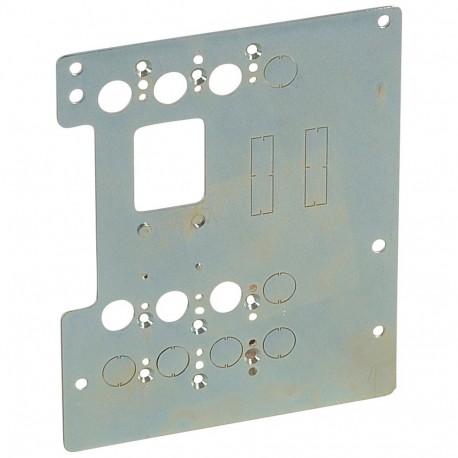

LEGRAND 020671 020671 LEGRAND XL3 PLATE DPX3 160 INV NETWORK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020671 LEGRAND XL3 PLATE DPX3 160 INV NETWORK

020671

020671

LEGRAND

1 Pcs.

XL3 PLATE DPX3 160 INV NETWORK Mounting plates XL³ 4000 for 1 DPX³ 160 in transfer switch - vertical XL³ 4000 mounting plate for 1 DPX³ 160 fixed inv. Networking - Vertical

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 020671 LEGRAND XL3 PLATE DPX3 160 INV NETWORK is a dedicated mounting plate engineered to accommodate DPX3 circuit breakers and associated network inversion gear inside Legrand distribution enclosures. Specialized breaker plates ensure correct mechanical spacing and secure installation within modular switchgear assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.305
  • Weight (g)491.00
Product characteristics
Fixing fixed version DPX³ 160/250 with front or rear terminals
Mounting plates for devices in vertical position
  • For 1 DPX³ 160 in transfer switch
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: DPX³ 160, DPX³ 250 fixed version
