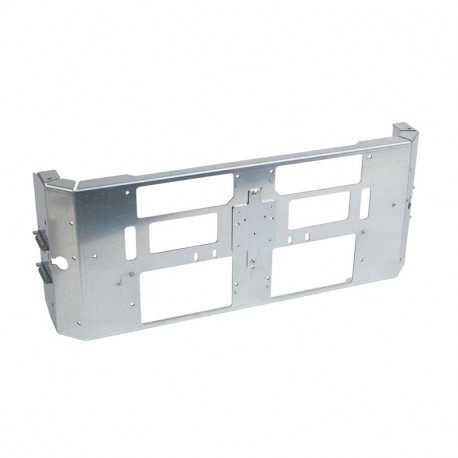

LEGRAND 020663 020663 LEGRAND XL3 D REG. INVES NETWORKS DPX3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020663 LEGRAND XL3 D REG. INVES NETWORKS DPX3

020663

020663

LEGRAND

1 Pcs.

XL3 D REG. INVES NETWORKS DPX3 Adjustable fixing devices XL³ 4000 for 2 DPX³ transfer switches - vertical - 36 modules XL³ 4000 Mounting Plate - 2 DPX³ Fixed Vertical Network Inverter - 24mod

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

020663 LEGRAND XL3 D REG. INVES NETWORKS DPX3 serves as a specialized internal regulation and separation component designed to organize and structurally support circuit breaker devices inside distribution boards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Metal
  • Suitable for enclosure building width (EF000326): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)16.992
  • Weight (g)2 731.00
Product characteristics
Fixing fixed version DPX³ 160/250 with front or rear terminals
Adjustable fixing devices for MCCBs in vertical position
  • The MCCBs are fixed using special mounting plates
  • Allow mounting direct rotary handles and front motor-driven handles
  • 24 modules
  • For 2 DPX³ in transfer switch
General characteristics
Equipment for XL³ 4000 - for mounting on adjustable plate: DPX³ 160, DPX³ 250 fixed version
