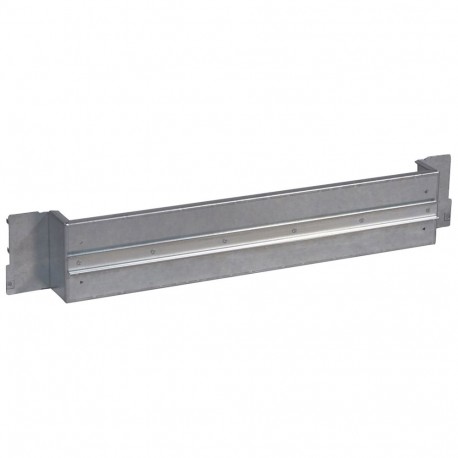

020661 LEGRAND XL3 PLATE DPX3 VERT 36 MOD
020661
020661
LEGRAND
1 Pcs.
Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for modular electrical systems, the 020661 LEGRAND XL3 PLATE DPX3 VERT 36 MOD acts as a dedicated internal mounting chassis designed to secure circuit breakers and protective devices in vertical arrangements. Such perforated metal plates ensure correct alignment and thermal dissipation for modular power distribution equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 300 mm
- Material (EF002169): Steel
- Perforated (EF000115): Yes
- Surface protection (EF000139): Lacquered
- Width (EF000008): 850 mm
More info
▲- Pack (number of units)1
- Volume (dm3)15.086
- Weight (g)3 004.00
- Direct fixing on functional uprights
- 36 modules
- Equipped with a rail symmetrical for fixing DPX³
- The DPX³ must be equipped with a fixing plate Cat.Nos 4 210 68/69/71/72 or plate for manual supply inverter Cat.No 4 210 58
- Designed for simultaneous mounting of DPX³ 160/250 and modular equipment (with spacer Cat.No 0 262 99)
