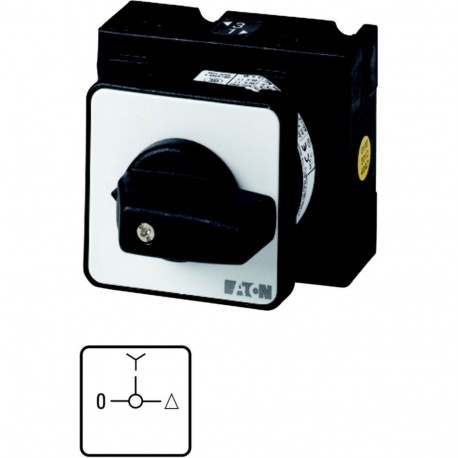

XL3 PLATE DPX3 250 HORIZ. Plate XL³ 800/4000 - for 1 DPX³ 250 - horizontal position - 24 modules Star-delta switches, T3, 32 A, flush mounting, 4 contact unit(s), Contacts: 7, 90 °, maintained, With 0 (Off) position, 0-Y-D, SOND 27, Design number

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

020617 Legrand xl3 plate dpx3 250 horiz. is a specialized mounting panel engineered to accommodate circuit breakers and protective switching devices in horizontal configurations. Perforated plates facilitate secure fastening and ventilation within switchboards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 200 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)15.077
  • Weight (g)1 705.00
Product characteristics
Plates for fixed version DPX³ 160/250 with front terminals
  • Direct fixing on functional uprights
Devices in horizontal position
  • For cut-out protection for cable passing, use seal Cat.No 0 202 40
  • 24 modules
  • For 1 DPX³ 250
General characteristics
Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
