View larger
Images are for illustrative purposes only. Please refer to data sheet for details

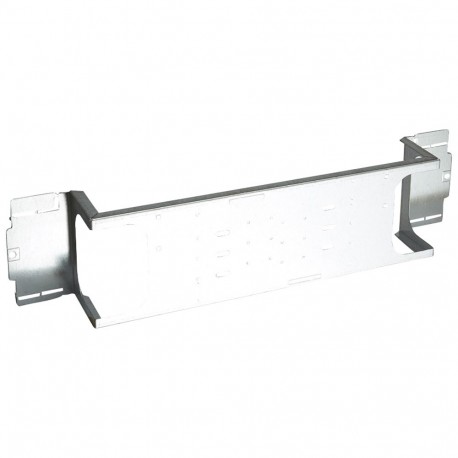

020615 LEGRAND XL3 PLATE DPX3 160 HORZ.
020615
020615
LEGRAND
1 Pcs.
XL3 PLATE DPX3 160 HORZ.
Plate XL³ 800/4000 - for 1 DPX³ 160 - horizontal position - 24 modules
XL³ 800/4000 Mounting Plate for DPX³ 160 - 24mod
Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)11.121
- Weight (g)1 299.00
Product characteristics
Plates for fixed version DPX³ 160/250 with front terminals- Direct fixing on functional uprights
- For cut-out protection for cable passing, use seal Cat.No 0 202 40
- 24 modules
- For 1 DPX³ 160
General characteristics
Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 150 mm |
| Material (EF002169) | Steel |
| Perforated (EF000115) | Yes |
| Surface protection (EF000139) | Lacquered |
| Width (EF000008) | 600 mm |
