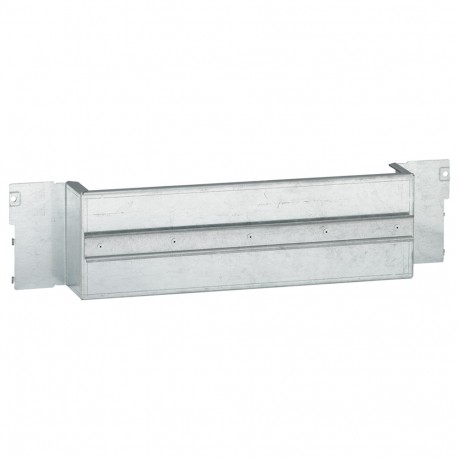

020611 LEGRAND XL3 PLATE DPX3 VERT 24 MOD
020611
020611
LEGRAND
1 Pcs.
XL3 PLATE DPX3 VERT 24 MOD
Plate with rail XL³ 800/4000 - for DPX³ in vertical position - 24 modules
XL³ 800/4000 Mounting Plate for DPX³ with Mounting Adapter - 24mod
Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)11.121
- Weight (g)2 266.00
Product characteristics
Plates for fixed version DPX³ 160/250 with front terminals- Direct fixing on functional uprights
- 24 modules
- Equipped with a rail symmetrical for fixing DPX³
- The DPX³ must be equipped with a fixing plate Cat.Nos 4 210 68/69/71/72 or plate for manual supply inverter Cat.No 4 210 58
- Designed for simultaneous mounting of DPX³ 160/250 and modular equipment (with spacer Cat.No 0 262 99)
General characteristics
Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 300 mm |
| Material (EF002169) | Steel |
| Perforated (EF000115) | Yes |
| Surface protection (EF000139) | Lacquered |
| Width (EF000008) | 600 mm |
