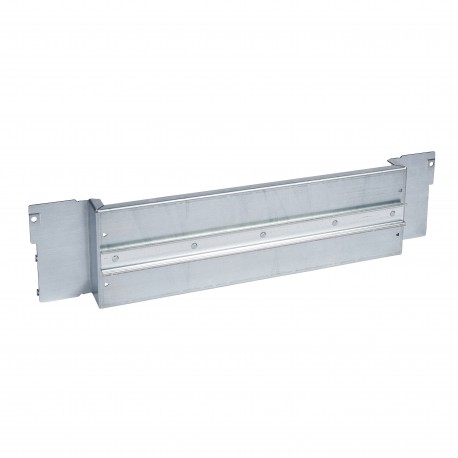

LEGRAND 020608 020608 LEGRAND XL3 PLATE DPX3 VERT MDO ROT View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020608 LEGRAND XL3 PLATE DPX3 VERT MDO ROT

020608

020608

LEGRAND

1 Pcs.

XL3 PLATE DPX3 VERT MDO ROT Plate XL³ 800/4000 - for DPX³ with direct rotary handle - in vertical position XL³ 800/4000 mounting plate for DPX³ with rotary knob - 24mod

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 020608 is a plate specifically engineered to accommodate vertical DPX3 modular circuit breakers and rotary handles within distribution assemblies. Internal plates of this nature help structure complex electrical control panels efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 300 mm
  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Lacquered
  • Width (EF000008): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.812
  • Weight (g)2 074.00
Product characteristics
Plates for fixed version DPX³ 160/250 with front terminals
  • Direct fixing on functional uprights
Devices in vertical position
  • 24 modules
  • Plate for DPX³ with direct rotary handle
  • The DPX³ must be equipped with a fixing plate Cat.Nos 4 210 68/69
General characteristics
Equipment for XL³ 4000 - for mounting on fixed plate : DPX³ 160 and DPX³ 250
