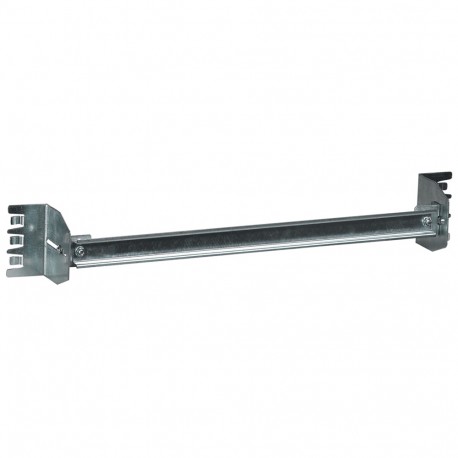

LEGRAND 020602 020602 LEGRAND XL3 PLAC DPX125/250ER+DIF L850 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020602 LEGRAND XL3 PLAC DPX125/250ER+DIF L850

020602

020602

LEGRAND

1 Pcs.

XL3 PLAC DPX125/250ER+DIF L850 Universal adjustable fixing device XL³ 800/4000 - 24 modules

Automation > Mounting rail
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020602 XL3 PLAC DPX125/250ER+DIF L850 is a DIN rail (top hat rail) 15 mm designed to provide robust mechanical support for heavy-duty switching and distribution gear in industrial panels. Top hat rails form the standard structural baseline for securing modular electrical components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 35 mm
  • Model (EF000010): DIN rail (top hat rail) 15 mm
  • Material thickness (EF000386): 15 mm
  • Material (EF002169): Steel
  • Punch shape (EF001457): Long-slot
  • Length (EF001438): 600 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.725
  • Weight (g)782.00
Product characteristics
Adjustable universal fixing devices
  • Comprising a rail and 2 adjustable fixing brackets
  • Fit onto the functional uprights
  • For 24 module cabinets and enclosures
General characteristics
Solid faceplates and accessories for XL³ 4000
