View larger
Images are for illustrative purposes only. Please refer to data sheet for details

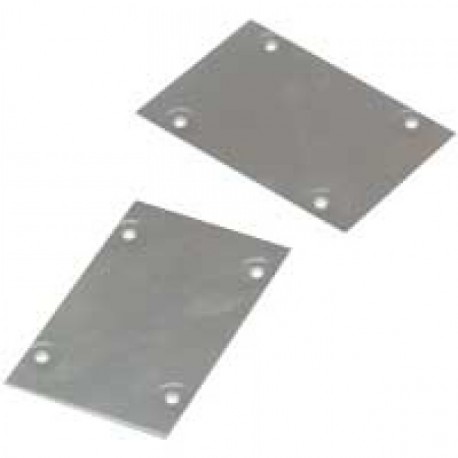

020589 LEGRAND XL3 SMOOTH PLATE TO LINK
020589
020589
LEGRAND
1 Pcs.
XL3 SMOOTH PLATE TO LINK
Flat reinforcement plates (2) XL³ 4000/6300 - for joining
Flat reinforcement plates (2) XL³ 4000/6300
Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.30
- Weight (g)452.00
Product characteristics
Mounting equipmentJoining
- Set of 2 flat reinforcement plates
General characteristics
Distribution enclosures XL³ 6300- IP 30 - IK 07
- Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2200 mm, usable faceplate height 2000 mm
| Feature Name | Feature Value |
|---|---|
| For internal separation form 3b (EF009589) | No |
| With lock (EF006306) | No |
| Material (EF002169) | Steel |
| For internal separation form 3a (EF009588) | No |
| Surface finishing (EF006569) | Other |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 4b (EF009591) | No |
| For internal separation form 4a (EF009590) | No |
| With cable entry (EF000325) | Yes |
| Construction type (EF000767) | Individual part |
