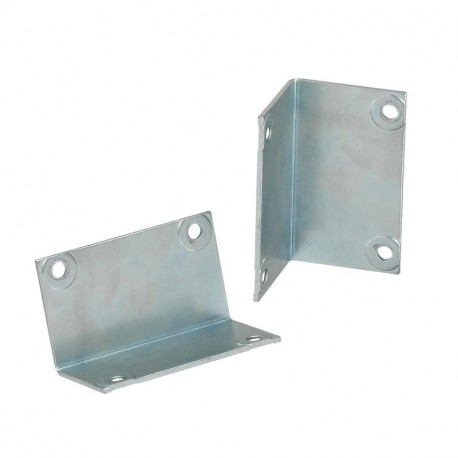

020588 LEGRAND XL3 PLATE IN L FOR LINK
020588
020588
LEGRAND
1 Pcs.
Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Plate in L for link part 020588 by Legrand is applied within industrial distribution enclosures to facilitate secure mechanical linking and structural transition between internal frame members. Such steel connection plates ensure rigid assembly integrity in complex switchboard configurations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- For internal separation form 3b (EF009589): No
- With lock (EF006306): No
- Material (EF002169): Steel
- For internal separation form 3a (EF009588): No
- For internal separation form 2b (EF009587): No
- For internal separation form 2a (EF009586): No
- For internal separation form 4b (EF009591): No
- For internal separation form 4a (EF009590): No
- With cable entry (EF000325): Yes
- Construction type (EF000767): Individual part
More info
▲- Pack (number of units)1
- Volume (dm3)0.523
- Weight (g)467.00
Joining
- Set of 2 L-shaped reinforcement plates
- IP 30 - IK 07
- Consist of the combination of a "roof-base" assembly, structural uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2200 mm, usable faceplate height 2000 mm
