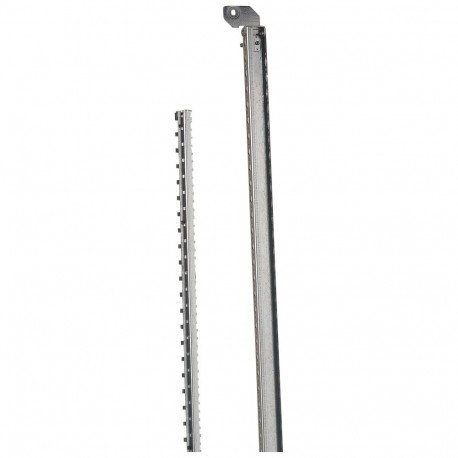

LEGRAND 020568 020568 LEGRAND XL3 FRAME PIVOT CABINET 725MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020568 LEGRAND XL3 FRAME PIVOT CABINET 725MM

020568

020568

LEGRAND

1 Pcs.

XL3 FRAME PIVOT CABINET 725MM Support frame XL³ 4000 - pivoting - H. 2000 - for enclos. w.725 Bracket frame for terminal cover covers XL³ 4000 - pivoting - cabinet L. 725mm

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)18.00
  • Weight (g)8 700.00
Product characteristics
Equipment
Support frame for faceplates
  • Pivoting for enclosure width 725 mm
  • Height : 2000 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

ETIM for 020568 Cabinets and enclosures (EC002620)
Feature Name Feature Value
Model (EF000010) Other
Material (EF002169) Metal
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Suitable for enclosure building height (EF009583) 2000 mm
