View larger
Images are for illustrative purposes only. Please refer to data sheet for details

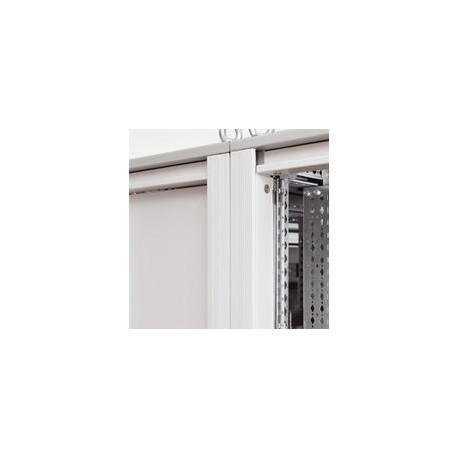

020562 LEGRAND XL3 KIT FINISH IP30 L725
020562
020562
LEGRAND
1 Pcs.
XL3 KIT FINISH IP30 L725
Finishing panel XL³ 4000 - IP30 - width 725 mm
IP30 XL³ 4000 Trim - L725mm H2000mm
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)5.00
- Weight (g)2 000.00
Product characteristics
Enclosures and cable sleeves modular metalFinishing panels IP 30
- IP 30 width 725 mm
General characteristics
Distribution enclosures XL³ 4000- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 2000 mm |
| Model (EF000010) | Other |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Grey |
| Suitable for enclosure building width (EF000326) | 725 mm |
| RAL-number (EF000116) | 7035 |
| Width (EF000008) | 725 mm |
| Suitable for enclosure building height (EF009583) | 2000 mm |
