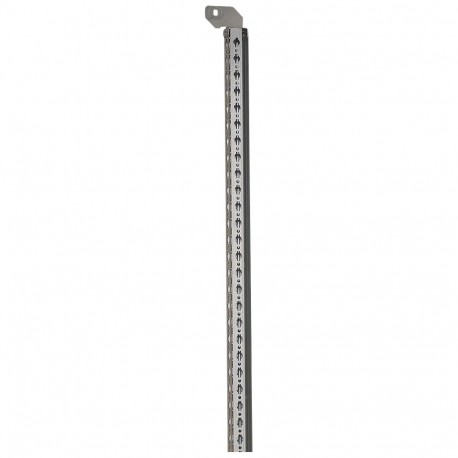

020558 LEGRAND XL3 FIXED FRAME ARM WITHOUT A CELL
020558
020558
LEGRAND
1 Pcs.
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
020558 LEGRAND XL3 FIXED FRAME ARM WITHOUT A CELL components function as structural support arms designed to secure internal framework assemblies within heavy-duty modular electrical distribution enclosures. They help maintain rigid alignment across multi-tier switchgear arrangements.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Material (EF002169): Metal
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Suitable for enclosure building height (EF009583): 2000 mm
More info
▲- Pack (number of units)1
- Volume (dm3)11.00
- Weight (g)4 200.00
Support frame for faceplates
- Fixed for enclosure width 725 mm or enclosure width 975 mm without internal cable sleeves
- Height : 2000 mm
- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
