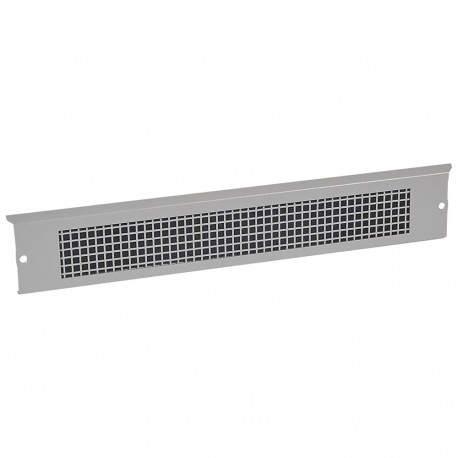

LEGRAND 020544 020544 LEGRAND XL3 PANEL VENTILATION BASE 725 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020544 LEGRAND XL3 PANEL VENTILATION BASE 725

020544

020544

LEGRAND

1 Pcs.

XL3 PANEL VENTILATION BASE 725 Ventilation panel XL³ 4000 - for plinth width 725 mm XL³ 4000 ventilation panel for L725mm skirting boards

Automation > Base/base element (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 020544 Legrand XL3 panel ventilation base provides an integrated airflow path beneath modular electrical enclosures. Plinth and base assemblies lift distribution panels to protect internal components, while dedicated venting configurations help maintain optimal thermal management inside heavy-duty industrial switchgear setups.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 100 mm
  • Model (EF000010): Base front/back
  • Material (EF002169): Steel
  • Suitable for cable patch (EF007251): No
  • Suitable for aeration/de-aeration (EF000324): Yes
  • Suitable for enclosure building width (EF000326): 725 mm
  • Colour (EF000007): Grey
  • Width (EF000008): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.00
  • Weight (g)887.00
Product characteristics
Accessories for natural ventilation
  • Assist natural ventilation
  • Screw mounting
Perforated panels
  • 24 modules
  • For plinth 725 mm width
General characteristics
Solid faceplates and accessories for XL³ 4000
