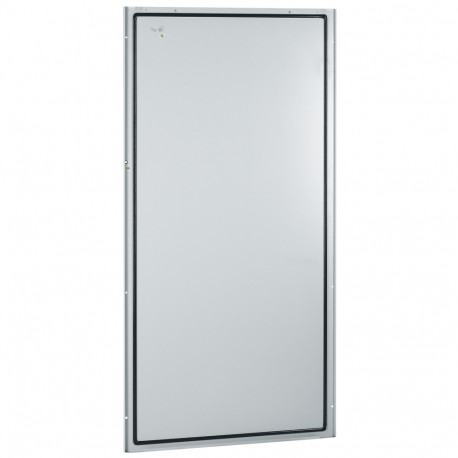

020543 LEGRAND XL3 PANEL LAT/POST 975 H2000
020543
020543
LEGRAND
1 Pcs.
Automation > Side/back panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 020543 functions as a structural panel suitable for deployment as a side or rear wall in modular enclosure configurations. Such panels form the outer boundaries of electrical distribution assemblies, protecting internal wiring and devices from external damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 1876 mm
- Modular spacing (EF000394): 975 mm
- Material (EF002169): Steel
- With lock (EF006306): No
- Surface finishing (EF006569): Powder coated
- Suitable as side panel (EF008287): Yes
- Suitable as rear panel (EF008288): Yes
- Colour (EF000007): Grey
- Suitable for enclosure building width (EF000326): 975 mm
- RAL-number (EF000116): 7035
- With cable entry (EF000325): No
- Suitable for enclosure building depth (EF000327): 975 mm
- Width (EF000008): 956 mm
More info
▲- Pack (number of units)1
- Volume (dm3)68.00
- Weight (g)22 141.00
Rear and side panels
- Fixed with screws
- Width 975 mm
- Height : 2000 mm
- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
