View larger
Images are for illustrative purposes only. Please refer to data sheet for details

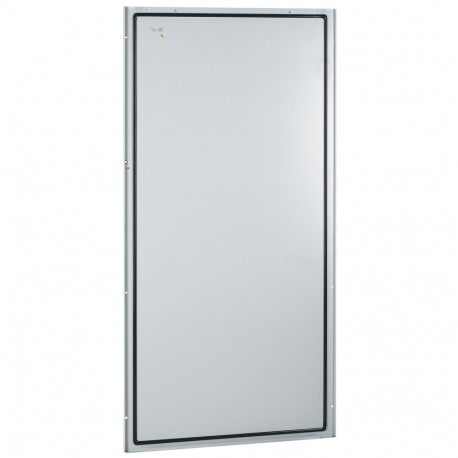

020542 LEGRAND XL3 PANEL LAT/POST 725 H2000
020542
020542
LEGRAND
1 Pcs.
XL3 PANEL LAT/POST 725 H2000
Rear and side panels XL³ 4000 - height 2000 mm - width 725 mm
Back and side panel XL³ 4000 - screw fastening H2000mm L. 725mm
Automation > Side/back panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)52.00
- Weight (g)16 992.00
Product characteristics
Enclosures and cable sleeves modular metalRear and side panels
- Fixed with screws
- Width 725 mm
- Height : 2000 mm
General characteristics
Distribution enclosures XL³ 4000- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 1876 mm |
| Modular spacing (EF000394) | 725 mm |
| Material (EF002169) | Steel |
| With lock (EF006306) | No |
| Surface finishing (EF006569) | Powder coated |
| Suitable as side panel (EF008287) | Yes |
| Suitable as rear panel (EF008288) | Yes |
| Colour (EF000007) | Grey |
| Suitable for enclosure building width (EF000326) | 725 mm |
| RAL-number (EF000116) | 7035 |
| With cable entry (EF000325) | No |
| Suitable for enclosure building depth (EF000327) | 725 mm |
| Width (EF000008) | 706 mm |
