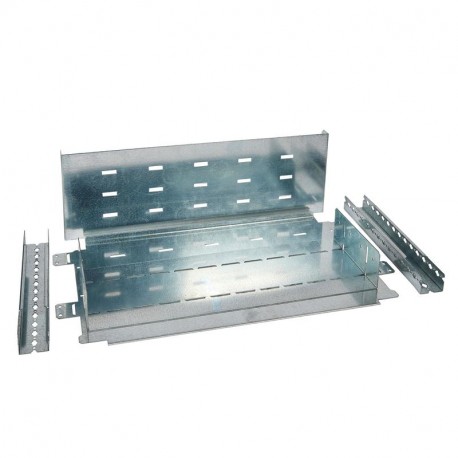

LEGRAND 020539 020539 LEGRAND XL3 KIT SEPARATION 4000A 975MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020539 LEGRAND XL3 KIT SEPARATION 4000A 975MM

020539

020539

LEGRAND

1 Pcs.

XL3 KIT SEPARATION 4000A 975MM Partitionning for 4000 A busbars - for form 2b/3b and 4 A 975 mm front terminals Horizontal busbar U-spacing set 4000AXL³ 4000 - D975mm

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020539 XL3 kit separation functions as an internal partitioning component for industrial distribution enclosures, helping compartmentalize switchgear assemblies to safeguard equipment and limit fault propagation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 975 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)35.00
  • Weight (g)11 500.00
Product characteristics
U-shaped separation kit for horizontal busbars 4000 A max.
For enclosure depth 975 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
