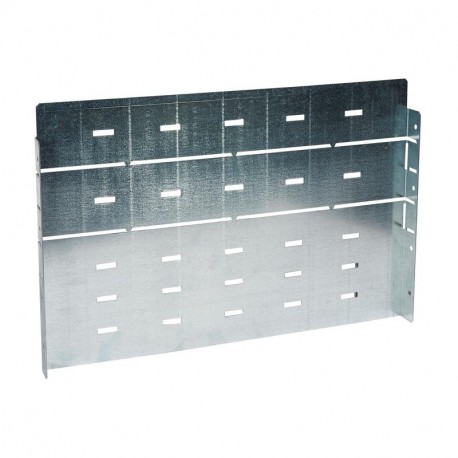

LEGRAND 020538 020538 LEGRAND XL3 KIT SEPARATION 4000A 725MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020538 LEGRAND XL3 KIT SEPARATION 4000A 725MM

020538

020538

LEGRAND

1 Pcs.

XL3 KIT SEPARATION 4000A 725MM Partitionning for 4000 A busbars - for form 2b/3b and 4 A 725 mm front terminals L-Clearance Set Horizontal Busbar 4000AXL³ 4000 - D725mm

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 separation kit for 4000A systems (part number 020538) establishes high-integrity internal barriers within heavy-duty industrial switchboards. These separation kits are deployed to meet stringent compartmentalization requirements around high-amperage busbars.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)20.00
  • Weight (g)8 991.00
Product characteristics
L-shaped separation kit for horizontal busbars 4000 A max.
For enclosure depth 725 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
