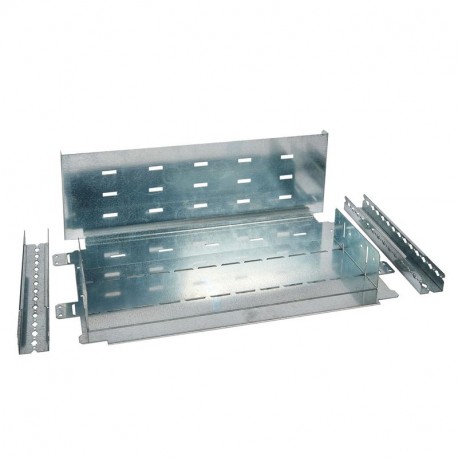

LEGRAND 020537 020537 LEGRAND XL3 KIT SEPAR. BUS HORIZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020537 LEGRAND XL3 KIT SEPAR. BUS HORIZ

020537

020537

LEGRAND

1 Pcs.

XL3 KIT SEPAR. BUS HORIZ Partitionning for 1600 A busbars - for form 2b/3b and 4 A 725 mm front terminals Horizontal busbar U-clearance set 4000AXL³ 4000 - L725mm

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 020537 is an XL3 kit for horizontal busbar separation, engineered to segregate main busbar runs inside large distribution enclosures. Busbar separation kits maintain arc containment and ensure compliance with internal separation standards in industrial switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 725 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)34.628
  • Weight (g)8 150.00
Product characteristics
U-shaped separation kit for horizontal busbars 1600 A max.
For enclosure depth 725 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
