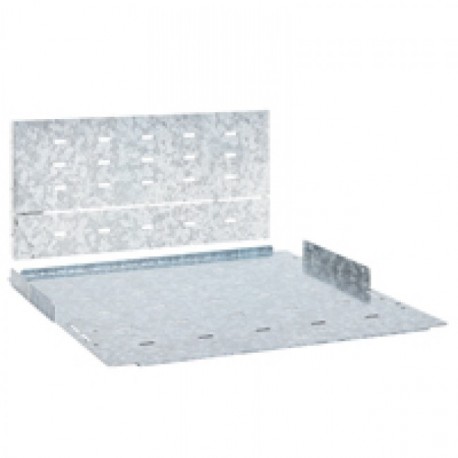

LEGRAND 020536 020536 LEGRAND XL3 KIT SEPAR. BUS HORIZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020536 LEGRAND XL3 KIT SEPAR. BUS HORIZ

020536

020536

LEGRAND

1 Pcs.

XL3 KIT SEPAR. BUS HORIZ Partitionning for 1600 A busbars - for form 2b/3b and 4 A 475 mm front terminals Horizontal busbar L-clearance set 1600AXL³ 4000 - D475mm

Automation > Divider panel (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020536 XL3 horizontal busbar separation kit provides internal compartmentalization for modular electrical distribution enclosures and switchboard assemblies. Busbar separation kits are standard accessories used to isolate primary power pathways and enhance safety within industrial power control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • For internal separation form 3b (EF009589): Yes
  • With lock (EF006306): No
  • Material (EF002169): Steel
  • For internal separation form 3a (EF009588): No
  • For internal separation form 2b (EF009587): Yes
  • For internal separation form 2a (EF009586): No
  • For internal separation form 4b (EF009591): No
  • For internal separation form 4a (EF009590): Yes
  • With cable entry (EF000325): Yes
  • Construction type (EF000767): Individual part
  • Suitable for enclosure building depth (EF000327): 475 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)16.401
  • Weight (g)6 907.00
Product characteristics
L-shaped separation kit for horizontal busbars 1600 A max.
For enclosure depth 475 mm
  • For forms:
    • 2b (front terminals connection)
    • 3b (front terminals connection)
    • 4a (front terminals connection)
General characteristics
Forms of separation equipment for XL³ 1600, 4000 and 6300
