020530 LEGRAND XL3 LIT DOUBLE CHASSIS PART

020530

020530

LEGRAND

2 Pcs.

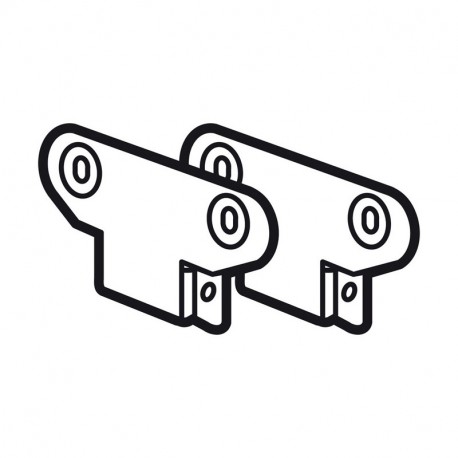

XL3 LIT DOUBLE CHASSIS PART Fixing plates (4)XL³ 4000 - for reduced functional uprights 205 12 XL³ 4000 cabinet bracket set for installing a partial double chassis

Automation > Mounting plate for distribution board
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand XL3 lit double chassis part functions as a modular framework component within distribution enclosures, providing alignment and mechanical support for multi-tier device arrangements. Chassis parts ensure stable structural integrity across complex electrical switchboards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Steel
  • Perforated (EF000115): Yes
  • Surface protection (EF000139): Untreated

More info

▲
  • Pack (number of units)2
  • Volume (dm3)3.675
  • Weight (g)1 157.00
Product characteristics
Equipment
Equipments for partial chassis
  • Kit consisting of 4 fixing plates for reduced functional uprights Cat.No 0 205 12
  • To be used when assembling a double partial chassis
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
