View larger
Images are for illustrative purposes only. Please refer to data sheet for details

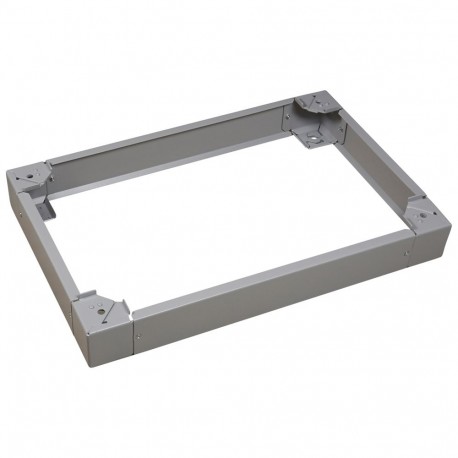

020514 LEGRAND XL3 SOCKET 475X725
020514
020514
LEGRAND
1 Pcs.
XL3 SOCKET 475X725
Plinth XL³ 4000 - height 100 mm - 725x475 mm
Socket Attachable XL³ 4000 H100mm - 725x475mm
Automation > Base/base element (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)15.00
- Weight (g)6 219.00
Product characteristics
Enclosures and cable sleeves modular metalPlinths that can be placed side by side
- Height : 100 mm
- Width : 725 mm
- Depth : 475 mm
General characteristics
Distribution enclosures XL³ 4000- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 100 mm |
| Model (EF000010) | Base complete |
| Material (EF002169) | Steel |
| Suitable for cable patch (EF007251) | No |
| Suitable for aeration/de-aeration (EF000324) | No |
| Depth (EF000049) | 725 mm |
| Suitable for enclosure building width (EF000326) | 475 mm |
| Colour (EF000007) | Grey |
| Suitable for enclosure building depth (EF000327) | 725 mm |
| Width (EF000008) | 475 mm |
