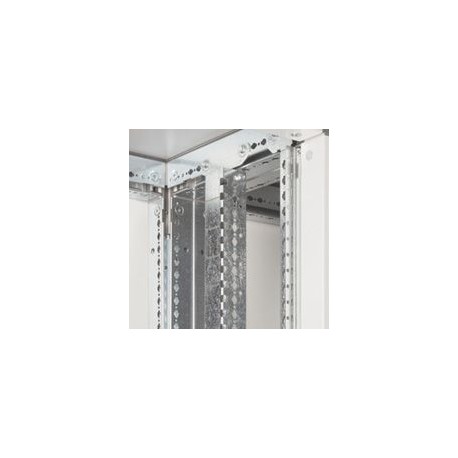

XL3 MONT FUNC REDUC 475 H2000
Functional uprights XL³ 4000 (2) - for enclosure depth 475 mm - H. 2000 mm
Functional upright (2) XL³ 4000 for 475mm H2000mm deep cabinet
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand 020512 mounting function reducer is used inside large modular enclosures to adapt compartment dimensions and structure internal functional blocks for specialized electrical distribution layouts.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 2000 mm
- Material (EF002169): Metal
- Depth (EF000049): 475 mm
- Suitable for enclosure building height (EF009583): 2000 mm
More info
▲- Pack (number of units)1
- Volume (dm3)12.00
- Weight (g)6 600.00
Product characteristics
EquipmentFunctional uprights
- Set of 2 functional uprights
- For fixing mounting equipment (faceplate, rails…)
- Reduced functional uprights for enclosure depth 475 mm
- Height : 2000 mm
General characteristics
Distribution enclosures XL³ 4000- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
