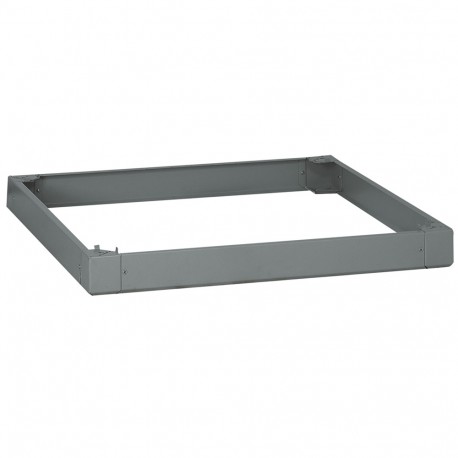

LEGRAND 020511 020511 LEGRAND XL3 SOCKET 475X475 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

020511 LEGRAND XL3 SOCKET 475X475

020511

020511

LEGRAND

1 Pcs.

XL3 SOCKET 475X475 Plinth XL³ 4000 - height 100 mm - 475x475 mm Socket XL³ 4000 H100mm - 475x475mm

Automation > Base/base element (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 020511 XL3 socket bases form the structural bottom framework for modular industrial distribution switchboards, lifting electrical equipment safely off the ground. They allow clean routing of incoming power lines and offer secure floor mounting points. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height: 100 mm
  • Model: Base complete
  • Material: Steel
  • Suitable for cable patch: No
  • Suitable for aeration/de-aeration: No
  • Depth: 475 mm
  • Suitable for enclosure building width: 475 mm
  • Colour: Grey
  • Suitable for enclosure building depth: 475 mm
  • Width: 475 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)11.00
  • Weight (g)5 313.00
Product characteristics
Enclosures and cable sleeves modular metal
Plinths that can be placed side by side
  • Height : 100 mm
  • Width : 475 mm
  • Depth : 475 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
