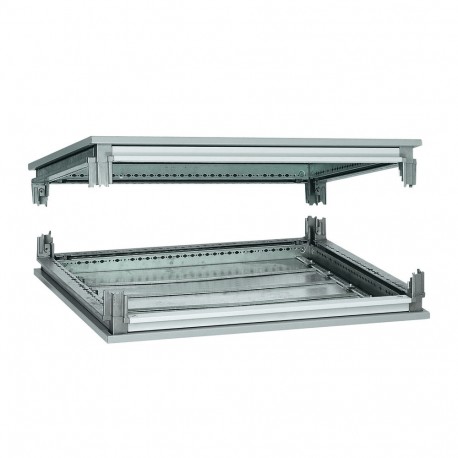

020509 LEGRAND XL3 BASE+ROOF ANCH975 PROF975

020509

020509

LEGRAND

1 Pcs.

XL3 BASE+ROOF ANCH975 PROF975 Roof base for enclosure XL³ 4000 - depth 975 mm - width 975 mm Ceiling - base for XL³ 4000 cabinet - Prof. 975mm - L975mm

Automation > Top-/floor cover element (enclosure/switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 020509 XL3 base and roof assembly forms the structural foundation and top capping for large modular distribution switchboards. Base and roof frames provide the rigid mechanical skeleton needed to align multi-bay low-voltage switchgear installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for outdoor set-up (EF005774): No
  • Height (EF000040): 150 mm
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Suitable for bottom planking (EF009585): Yes
  • Suitable for roof planking (EF009584): Yes
  • With de-aeration (EF001161): No
  • Depth (EF000049): 975 mm
  • Colour (EF000007): Grey
  • Suitable for enclosure building width (EF000326): 975 mm
  • RAL-number (EF000116): 7029
  • With cable entry (EF000325): Yes
  • Suitable for enclosure building depth (EF000327): 975 mm
  • Width (EF000008): 975 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)296.00
  • Weight (g)41 000.00
Product characteristics
Enclosures and cable sleeves modular metal
Roof-base for enclosure
  • Fitted with cable entry plates
  • Take the structural uprights
  • Depth : 975 mm
  • Width external : 975 mm
  • Width usable : 850 mm
General characteristics
Distribution enclosures XL³ 4000
  • IP 30 - IK 07
  • IP 55 - IK 08 with door and sealing kit for use when joining enclosures
  • Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
  • Height 2000 or 2200 mm.
  • Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
  • Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
