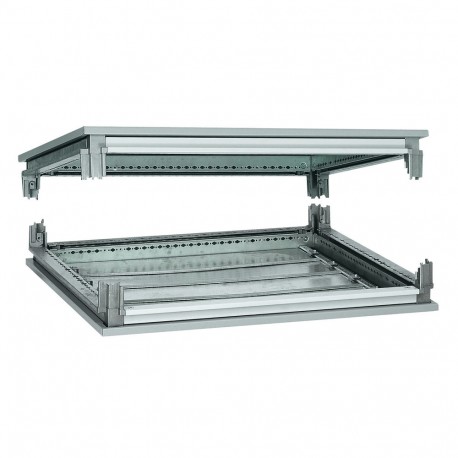

020506 LEGRAND XL3 BASE+ROOF ANCH725 PROF975
020506
020506
LEGRAND
1 Pcs.
Automation > Top-/floor cover element (enclosure/switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 020506 XL3 base and roof anchoring set provides structural mounting security for heavy-duty modular floor-standing enclosures. Base and roof frames anchor industrial cabinets securely to facility floors while tying together upper assembly frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for outdoor set-up: No
- Height: 150 mm
- Material: Steel
- Surface finishing: Powder coated
- Suitable for bottom planking: Yes
- Suitable for roof planking: Yes
- With de-aeration: No ...
More info
▲- Pack (number of units)1
- Volume (dm3)216.00
- Weight (g)42 000.00
Roof-base for enclosure
- Fitted with cable entry plates
- Take the structural uprights
- Depth : 975 mm
- Width external : 725 mm
- Width usable : 600 mm
- IP 30 - IK 07
- IP 55 - IK 08 with door and sealing kit for use when joining enclosures
- Consist of the combination of a "roof-base" assembly, structural uprights, functional uprights, rear and side panels RAL 7035, plinths RAL 7004
- Height 2000 or 2200 mm.
- Capacity 24 modules (enclosures width 725 or width 975 with internal cable sleeve), 36 modules (enclosures width 975)
- Usable faceplate height 1800 mm (1700 mm only if using the pivoting support frame) or 2000 mm
